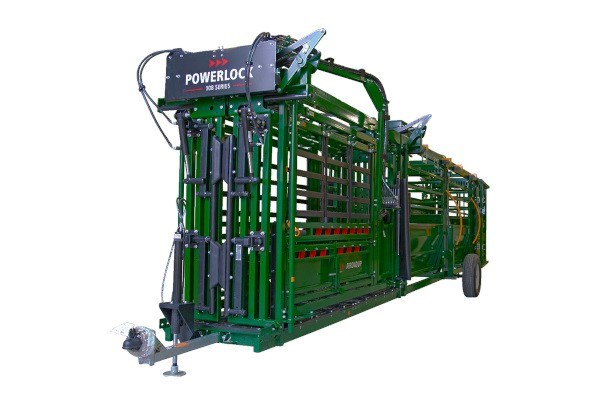

Welcome the all-new Powerlock 108 Series Portable Hydraulic Chute for Cattle, Alley, and Tub – your ultimate solution designed to handle any task, no matter how tough. With fast-acting hydraulics that are mounted on a pivoting swing arm, you can have complete control at any point on either side of the squeeze chute.
With a redesignedcattle tub featuring welded-on joiner bars, your installation and take down time becomes faster than ever before. Our well-known 3E technology is used throughout the unit, so you can be sure your operating system is as efficient as possible, starting at the front with a barred head gate that allows cattle to see light, all the way to the newly designed rolling door.
Get the portable unit of your dreams and get the job done right with the Powerlock 108 Series Portable Hydraulic Cattle Chute, Alley & Tub.
Powerlock 108 Series Portable Chute for Cattle, Alley & Tub Features & Benefits
Powerlock 108 Series Hydraulic Chute
The new Powerlock 108 Series Hydraulic Cattle Chute for cattle sets a new standard for hydraulic squeeze chutes. Equipped with rapid-response hydraulics for total control and 3E components for low-stress handling, this chute is everything you need.Now you can process your cattle in record time, saving you time for things that truly matter.
18’ Easy Flow Cattle Alley
Complete your portable unit with 18’ of adjustable alley. This added length allows you to run more cattle into the alley at once, eliminating the need for stop-and-go handling, which can be challenging – especially for portable equipment.EachEasy Flow Cattle Alley section comes equipped with removeable panels so you can control what cattle see which helps them flow in the right direction.
Redesigned Collapsible Cattle Tub
Goodbye are the days of difficult set up with the all-new cattle tub design. With welded-on joiner bars, setting up and taking down the tub is ultimately fool proof.With the collapsible design, your unit is more compact than ever when towing. The tub easily folds in on itself, shortening the unit by up to 5’ 8” so you can tow it safely without worrying about taking up too much room.
Innovative Safety for Cattle Management
With an array of safety features, the Powerlock 108 Series Portable Hydraulic Cattle Chute, Alley, and Tub is the perfect addition for your operation.With full emergency side exits on the chute and alleys and a tub that works with cattle behavior to encourage low-stress handling, you can feel confident in the equipment you’re using.
Powerlock 108 Series Portable Chute for Cattle, Alley & Tub Specs & Compare
- Hydraulic squeeze ranges from 31.5” fully open to 7.75” fully closed
- Hydraulics are controlled from a pivoting swing arm for full control
- Barred head gate design uses light to draw cattle into the chute
- Curtain-style head gate opens parallel to a full 31.5”
- Two rows of poly-composite rump fingers ensure safety no matter the animal size
- Vet doors open a full 180° for complete maneuverability
- Full side emergency exit for complete access to your cattle
- Swing-out bottom access doors
- Six side access panels can be removed and configured in multiple ways
- True virgin infinite rubber floor backed by a lifetime guarantee
- Cradle-shape in the alley ranges from 31.5” to 21” in width
- Safety latches on the cattle alley add security and control when adjusting to ensure the sides won’t drop accidentally
- Cattle Tub that folds in on itself for compact towing
- Joiner Bars welded onto the cattle tub frame for a simpler set up
Available Models
Model: Crowding Tub
Weight: 6037 - 6395 (depending on tub option) lbs.
Dimensions: 103" - 180" Wide x 101" High x 577" Long
Towing Dimensions: 81" Wide x 116" High x 483" Long
Model: Budflow
Available Add-Ons/Options
Hydraulic Head Sweep
A simple, gentle, and effective option that connects to the hydraulic controls on your squeeze chute to hold the animals head in place with ease.
Fourth-Generation Cattle Head Holder
The fourth generation of the Cattle Head Holder is stronger and sturdier than ever before. The head holder easily attaches to your head gate and clamps around the cattle’s neck so you can safely treat your cattle up-close. Featuring a patented single lever push-pull operation, this head restraint simplifies any necessary procedures.
Sternum Bar
The Sternum Bar supports the sternum and eliminates space at the bottom of the chute to prevent cattle from laying down. Arrowquip’s sternum bar comes sheeted to reduce hoof traps and can be installed or removed easily with two bolts.
Balk Gate for Cattle
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the all-new Arrowquip Cattle Balk Gate. This will help create a controlled environment so you can treat your cattle with ease.
Wheel Kit
Make your chute portable in no time with a wheel kit. You’ll be hitting the road in no time with a quick and easy installation – because we know how precious your time is.
Lug Post Kit
The Lug Post Kit allows you to connect corral panels to your Arrowlock or Powerlock cattle chute. Simply bolt the lug posts onto the head gate of your chute, and you will be able to connect panels or a Draft Module to create a closed handling system.
Calf Restrainer Bar
The Calf Restrainer Bar keeps your cattle safely contained when both side doors are opened for hoof trimming. This simple and effective option can be adjusted to accommodate cattle of different sizes, and is installed with just four bolts.
Electric Hydraulic Power Pack
5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
Gas Hydraulic Power Pack
7HP gas motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
Tractor Hydraulic Hook-up
Enables you to power the squeeze chute from the hydraulics on a tractor or other hydraulic equipment.
Stealth Upgrade Electric Power Pack
The NEW Stealth Upgrade Electric Power Pack is a virtually silent power source with a 7.5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 10.9GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
